Geekworm X12-A1 Stackable 4-Slot Battery Holder with Protection Fuse Compatible with X1203 & X1209 UPS HAT

The X12-A1 V1.0 is a stackable battery rack designed to expand the backup power of UPS HAT systems. It uses a parallel configuration of four batteries, providing plug-and-play battery capacity expansion for compatible UPS HAT systems such as the X1209 (top-mounted) and X1203 (bottom-mounted). Each battery has an independent ultra-low resistance resettable fuse to effectively prevent over-discharge risks; the four parallel XH2.54 connectors support convenient connection and multi-stand stacking, allowing for flexible increases in total power capacity as needed.

• Compatibility: Compatible with X1203 UPS HAT (bottom-mounted Raspberry Pi), X1209 UPS HAT (top-mounted Raspberry Pi)
• Flexible Stacking: 4pcs XH2.54 2pin connectors provide direct compatibility with specified UPS HATs for stable power expansion
• Independent Protection: Each battery slot includes a resettable fuse to prevent over-discharge and ensure safe operation
• Easy Expansion: Plug-and-play design ensures quick capacity upgrades without complex modifications

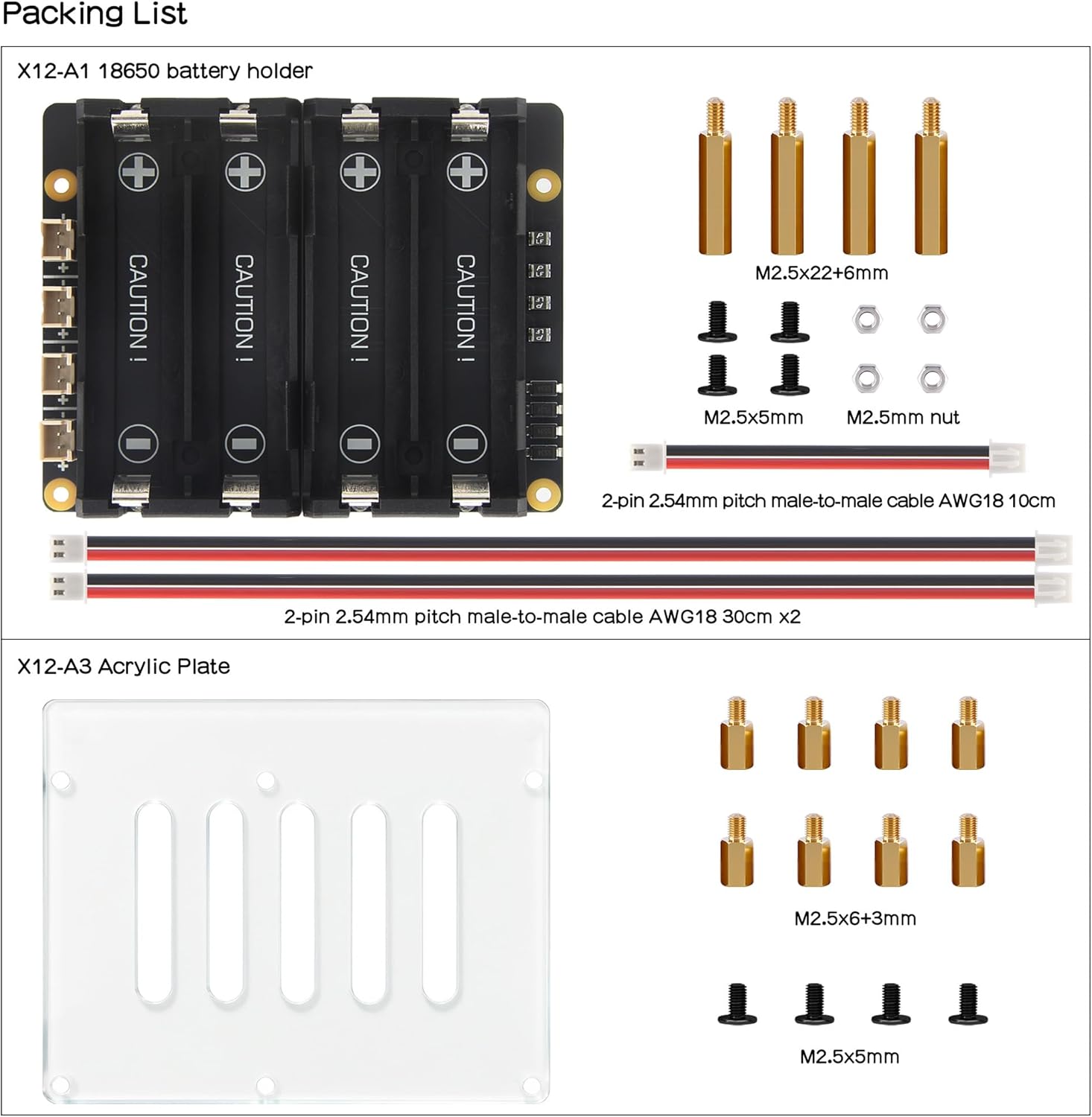

• Packing List: 1 x X12-A1 battery holder (4-cell parallel), 2 x 2-pin 2.54mm pitch male-to-male cable AWG18 30cm , 1 x 2-pin 2.54mm pitch male-to-male cable AWG 10cm, 4 x M2.5x22+6mm, 4 x M2.5x5mm, 4 x M2.5mm nut
• Parallel Configuration: Four-battery parallel design provides enhanced backup power capacity for extended runtime during power outages or system operation
• Ultra-Low Resistance Fuses: Independent resettable fuses for each battery slot feature ultra-low resistance to effectively prevent over-discharge risks while maintaining optimal power delivery
