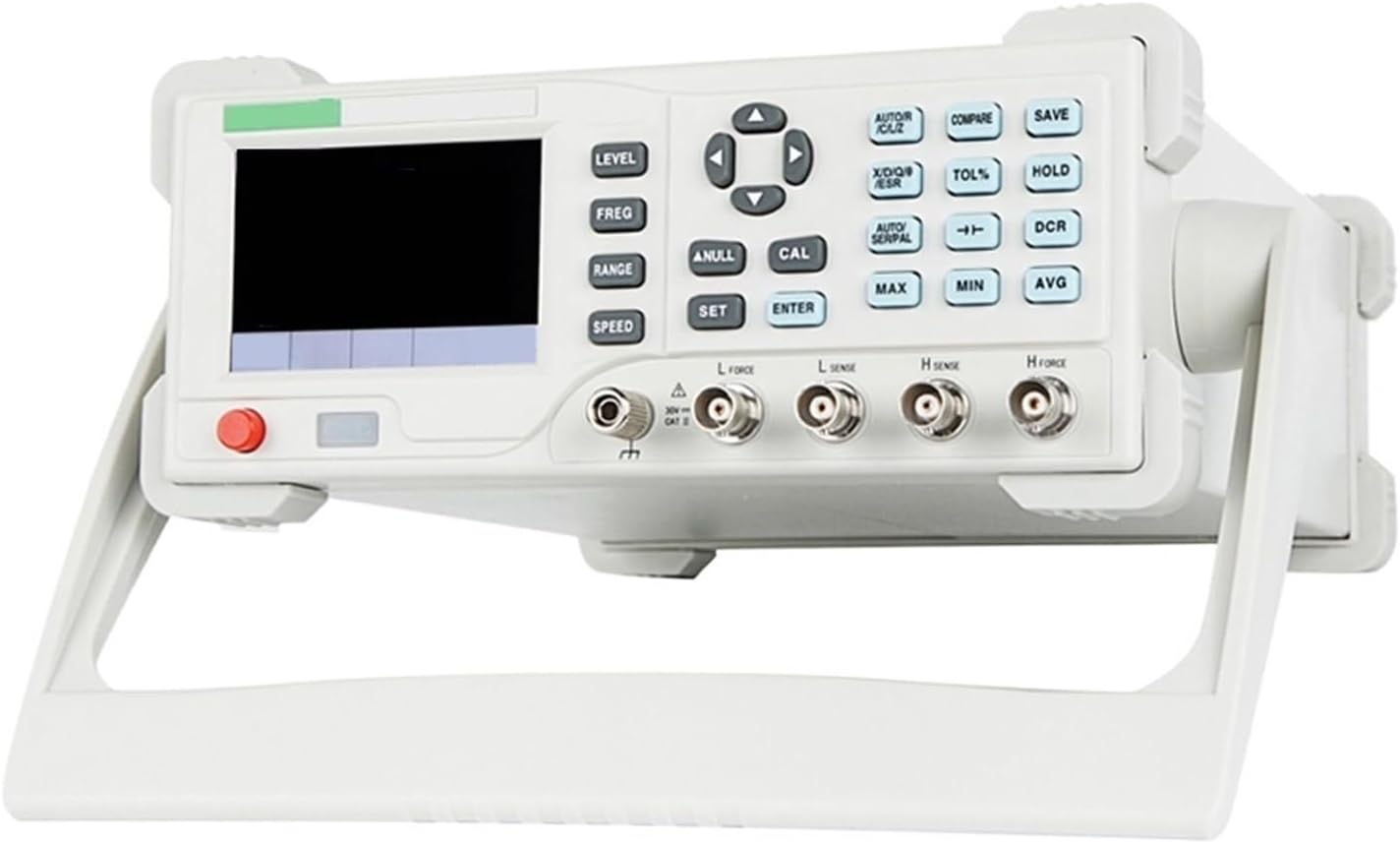

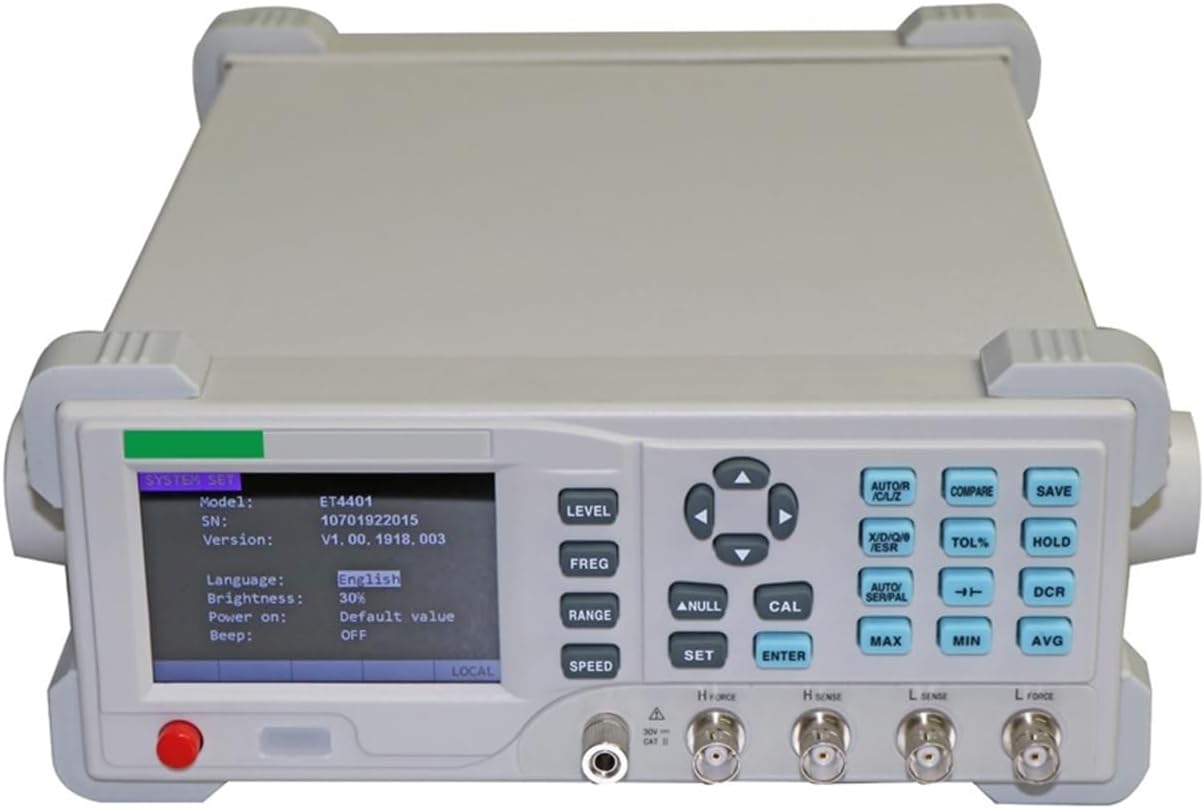

Desktop Digital LCR Meter Capacitance Resistance Impedance Inductance Measure Instrument(ET4401)

Features:Measurement frequency up to 100kHzTest level 100 ~ 2000mVSupport the measurement of DC resistance and electrolytic capacitorInternal bias voltage output (1mV-1500mV)Automatic identification of component measurement3.5-inch TFT display, 5 and a half bits displayUSB, RS232 communication interface, Handle sortingData recording function (maximum and minimum values, average value)Support SCPI communication protocolProvide system settings, which can configure language, buzzer, screen brightness, etc according to the needs of users.Basic accuracy 0.2%Manual and automatic rangeBe equipped with open circuit and short circuit correctionComparator has sorting and alarm functionProvide a variety of test portsSpecifications:Digits Main parameter: 5 digits; secondary parameter: 5 digitsMeasurement Parameter Main parameter: L/C/R/Z; secondary parameter: X/D/Q//ESRMeasurement Range(L) 0.01H - 9999HMeasurement Range(C) 0.01pF - 99999FMeasurement Range(R) 0.0001 - 99.99MBasic Accuracy 0.2%Measurement Display Speed 2 times/second (slow), 4 times/second (medium speed), 8 times/sec (fast)Internal Bias 0-1500mV adjustable, 1mV steppingTest Level 100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mVCorrection Function Open circuit correction, short circuit correctionScreening function The screening limit can be set from -50% to + 50% with fixed points of 1%, 5%, 10% and 20%Selection of comparator Five gear sorting, third gear qualified, one gear failed, one ancillary gearCommunication Interface Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB HostOthers Support DCR, electrolytic capacitor measurement mode, adjustable backlight brightness, optional in English and Chinese<;80%.<;80%.Dimensions: 265mm * 105mm * 305mm (width * height* depth).Mass: 2.3kg.<;10WProduct descript

• Lightweight and Portable With a portable design, it is easy to carry and use on the move.
• Fast Measurement Speed With fast measurement speed, accurate tests can be completed in a short period of time.
• User-friendly interface A user-friendly interface and operation buttons enable users to set up and operate the measurement easily.
• Manual and automatic range Be equipped with open circuit and short circuit correction.
• Comparator has sorting and alarm function Provide a variety of test ports.
